ISP Case IS4521-2303
가격문의(상세정보 참조)
가격문의 (031-999-6766)
Interior (L×W×D) : 114.3 x 53.3 x 66 cm
Exterior (L×W×D) : 121.9 x 61 x 81.3 cm
Total Depth : 66 cm
Weight Empty : 32.7 kg
OVERVIEW

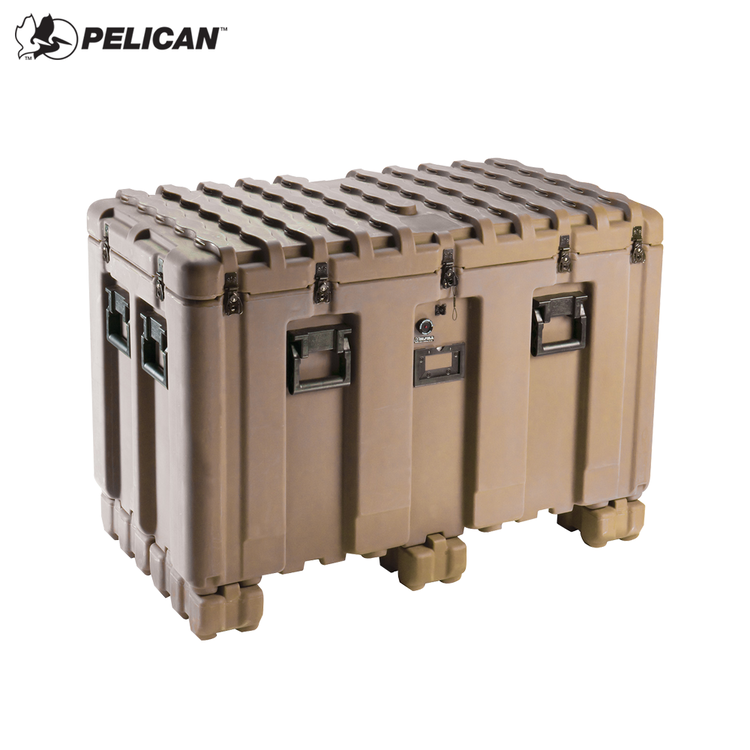

Shifting loose cargo can slow down your ops and threaten the mission with damaged freight. The new ISP Case from Pelican™ virtually eliminates load movement with a unique Inter-Stacking Pattern (ISP). The patent pending system is compatible across 6 different case sizes from 4 to 25 cubic feet of storage. Equipped with a silicone sponge O-ring and pressure release valves, the ISP Case is impervious to extreme weather and wet conditions.
The system is designed to maximize the volume of standard logistics platforms. Whether loading standard pallets, NATO pallets, JMIC containers, 463L pallets or sea containers, the ISP Case system will make the most efficient use of cargo space.
With its Inter-Stacking Pattern there is no question where the next case belongs. The disc pattern bottom mates with the wave pattern on the case below, literally falling and locking into place. Cross-stacking builds incredibly tight loads that can save time with strapping or netting.
- Standard Features:
- Removable Lid
- Freebreathing
- Black Carbon Steel, All Catch and Strike Hardware
- 8 Large Injection Molded Comfort Grip handles
- Colors: BLACK_032, GREY_133, OLIVE DRAB_137, RED_130, TAN_250
- Inter-Stacking Pattern Cases for NATO pallets, JMIC containers, 463L pallets or sea containers
- Configurable Features:
- Hardware: Black Stainless Steel
- Pressure Relief Valve (PRV) with Closed Gasket
- Metal Handles: Black Stainless Steel
- 2 Cable Catch locks per case
- 2 Padlock Hasps per case
- 3" X 5" Horizontal Card Holder
- Front Labels, STD Labels and ATA Labels
- Pressure Relief Valve
- Humidity Indicator
- Lift Grip (750 lbs LC each installed)
- Skid Runners (4” height)
SPECS
DIMENSIONS
Interior (L×W×D)
45.00 x 21.00 x 26.00 in (114.3 x 53.3 x 66 cm)
Exterior (L×W×D)
48.00 x 24.00 x 32.00 in (121.9 x 61 x 81.3 cm)
MEASUREMENTS
Lid Depth
3.00" (7.6 cm)
Bottom Depth
23.00" (58.4 cm)
Total Depth
26" (66 cm)
Int Volume
14.22 ft³ (0.403 m³)
WEIGHTS
Weight With Foam
103.00 lbs (46.7 kg)
Weight Empty
72.00 lbs (32.7 kg)
MATERIALS
Body Material
RotoMolded Polyethylene
Latch Material
Steel (Nickel-black Plated)
O-Ring Material
Silicone Sponge
Pins Material
Stainless Steel
Pins (Alt) Material
Aluminum
Purge Body Material
Aluminum
TEMPERATURES
Minimum Temperature
-20° F (-29 ° C)
Maximum Temperature
140° F (60 ° C)
APPROVALS
Certifications
MIL-STD-810F
