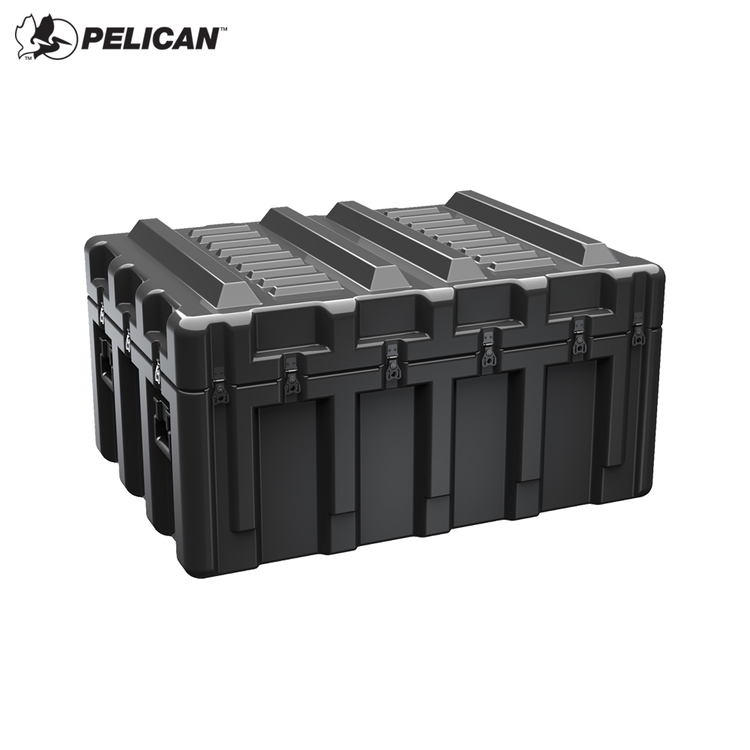

Single Lid Case AL4532-1606
가격문의(상세정보 참조)
가격문의 (031-999-6766)
Interior (L×W×D) : 114.3 x 81.3 x 54.6 cm
Exterior (L×W×D) : 121.9 x 88.9 x 66 cm
Total Depth : 54.6 cm
Weight : 37.2 kg
OVERVIEW
Trusted for over 40 years by the US Military, Single Lid Cases offer 20% more protective material in the edges and corners, where it is needed most, ensuring that valuable equipment is kept safe from any unforeseen elements. Available in several sizes, these cases are completely customizable with a wide range of bolt-on options like document holders, casters, humidity indicators and much more.
- One-piece construction, molded from lightweight, high-impact polyethylene
- Molded-in ribs and corrugations for secure, non-slip stacking, columnar strength, and added protection
- Patented molded-in metal inserts for catch and hinge attachment points, which provide strength and spread loads to the container
- Positive anti-shear locks, which prevent lid separation after impact, and reduce stress on hardware
- Molded-in, tongue-in-groove gasketed parting lines for splash resistance and tight seals, even after impact
- Reinforced corners and edges for additional impact protection
- Recessed hardware for extra protection
SPECS
DIMENSIONS
Interior (L×W×D)
45.00 x 32.00 x 21.50 in (114.3 x 81.3 x 54.6 cm)
Exterior (L×W×D)
48.00 x 35.00 x 26.00 in (121.9 x 88.9 x 66 cm)
MEASUREMENTS
Lid Depth
6.00" (15.2 cm)
Bottom Depth
15.50" (39.4 cm)
Total Depth
21.5" (54.6 cm)
Int Volume
17.92 ft³ (0.507 m³)
WEIGHTS
Weight
82.00 lbs (37.2 kg)
Buoyancy
1496.16 lbs (678.6 kg)
MATERIALS
Body Material
RotoMolded Polyethylene
Latch Material
Steel (Nickel-black Plated)
O-Ring Material
Silicone Sponge
Foam Material
No Foam, empty case standard
Optional PE and PU, 1 and 2 lb. options filled and lined
Optional PE and PU, 1 and 2 lb. options filled and lined
Purge Body Material
Aluminum
PRV Valve Material
.5 PSI Standard, Light Lift .25 PSI
Handle Material
Heavy Duty Injection Molded Standard
Optional Handles Material
Stainless Steel Passivate and Stainless Steel Black
Hardware Material
Yellow Carbon Steel Standard
Optional Hardware Material
Black Carbon Steel, Stainless Steel Passivate and Stainless Steel Black
TEMPERATURES
Minimum Temperature
-20° F (-29 ° C)
Maximum Temperature
140° F (60 ° C)
TESTING
Pelican-Hardigg Single Lid style roto cases have been designed and tested to meet or exceed the applicable requirements of the following standards. Qualification is conducted through direct testing and/or engineering analysis of product and test similarity; testing has been conducted on containers of various sizes and configurations as applicable.
- MIL-STD-810E, Method 505.3, Procedure II – SOLAR RADIATION
- ASTM E96, MIL-C-4150J and ASTM D 1008-64 – WATER-VAPOR TRANSMISSION RATE (PERMIABILITY)
- FED SPECIFICATION L-P-390c, Type M. – TENSILE/ELONGATION/COMPRESSIVE/FLEXURAL
- FED-STD-101, Method 5009 – LEAK TEST
- FED-STD-101, Method 5016 & DOT 49CFR 178.350 – CONCENTRATED LOAD (STACK/SUPERIMPOSED)
- FED-STD-101, Method 5011 – HANDLING
- MIL-STD-810E, Method 514.4 – VIBRATION (COMPOSITE INPUTS)
- MIL-STD-810E, Method 516.4, procedure IV – SHOCK (TRANSIT DROP)
- MIL-STD-810E, Method 501.3, procedure I – TEMPERATURE (STORAGE, HIGH TEMPERATURE)
- MIL-STD-810E, Method 502.3, procedure I – TEMPERATURE (STORAGE, LOW TEMPERATURE)
- MIL-STD-810E, Method 507.3, Procedure I – RELATIVE HUMIDITY
- MIL-STD-810E, Method 500.3 – ALTITUDE (LOW PRESSURE)
- MIL-STD-210C & MIL-STD-810D, Method 510.2, Procedure I – SAND AND DUST
- MIL-STD-810E, Method 509.3, Procedure I @ 5% – SALT FOG
- MIL-STD-810D, Method 508.4 – FUNGUS
- MIL-STD-810D, Method 506.2, Procedure I – RAIN WITH WIND
- MIL-STD-810D, Method 512.2, Procedure I – IMMERSION ONE (1) METER
- ATA 300, Category I – REQUIRMENTS FOR REUSABLE CONTAINERS
